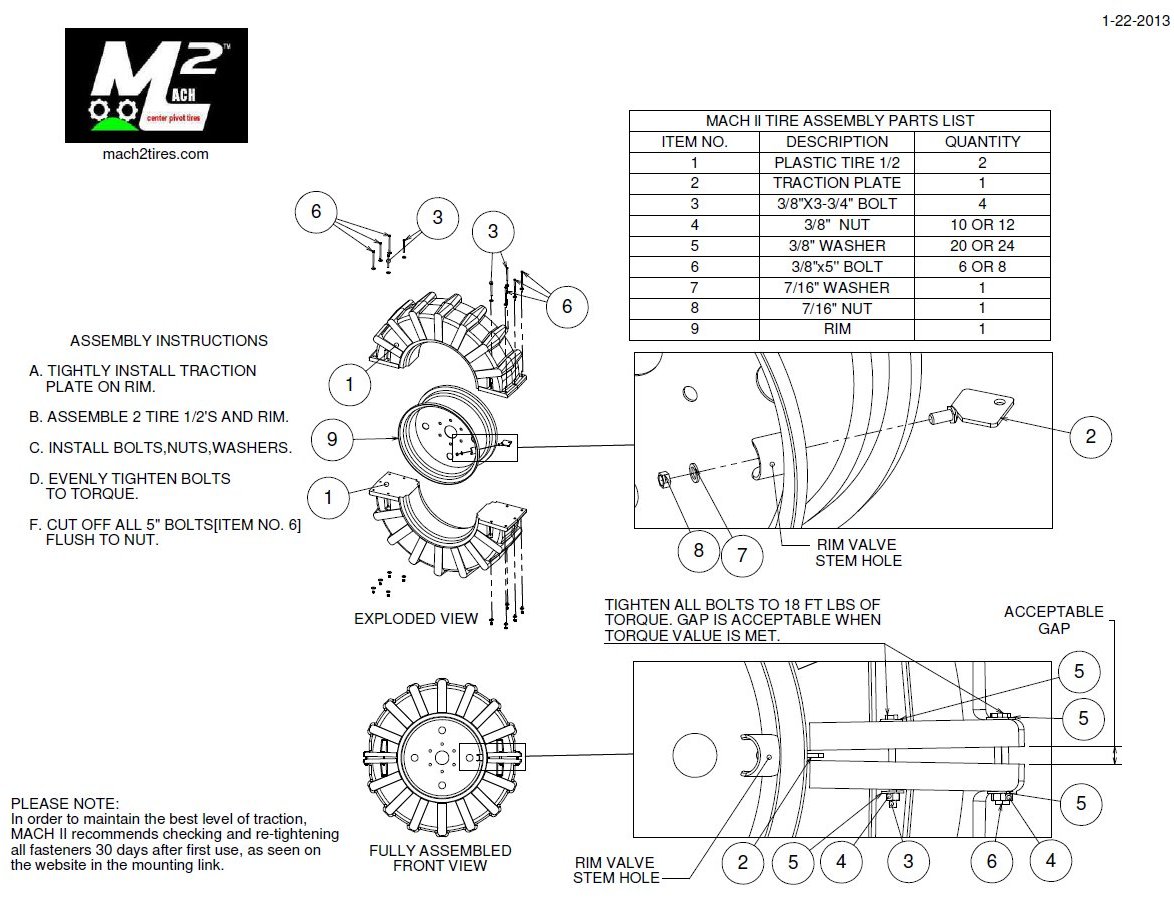

MOUNTING TIRES ON RIM INSTRUCTIONS

Click on each picture for larger image.

1. Two halves sitting on rim			2. Two halves with bolts in place
3. Gap before tightening			4. Tightened halfway
5. Completely tightened			6. Completely tightened with tip of cleats touching
7. Bolts cut off			8. Finished look
9. Ready to install on pivot
